duotight 8mm Push In Joiner (Double O-Ring)

This straight joiner is suitable for our EVABarrier Beer & Gas hosing in 4mm ID & 5mm ID line or most lines with  8mm outer diameter.

It will not fit the 10mm OD EVABarrier line (with 6mm ID) but we do sell these larger 10mm duotight fittings separately.

No clamps necessary!
We do recommend cutting your hosing straight, not on an angle, to ensure the line has a complete seal. To remove the fitting simply push in the collet and the hose can be removed. These push in fittings are suitable to be used up to 100 psi

These push in fittings have been engineered for maximised performance in both gas and liquid applications. Compared to other push in fittings on the market, duotight takes the double safety approach to all of the connections with two EPDM o-rings per hose port. No other push ins on the market have EPDM o-rings, let alone two! per push in connection.

What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds.   When compared with silicon and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.

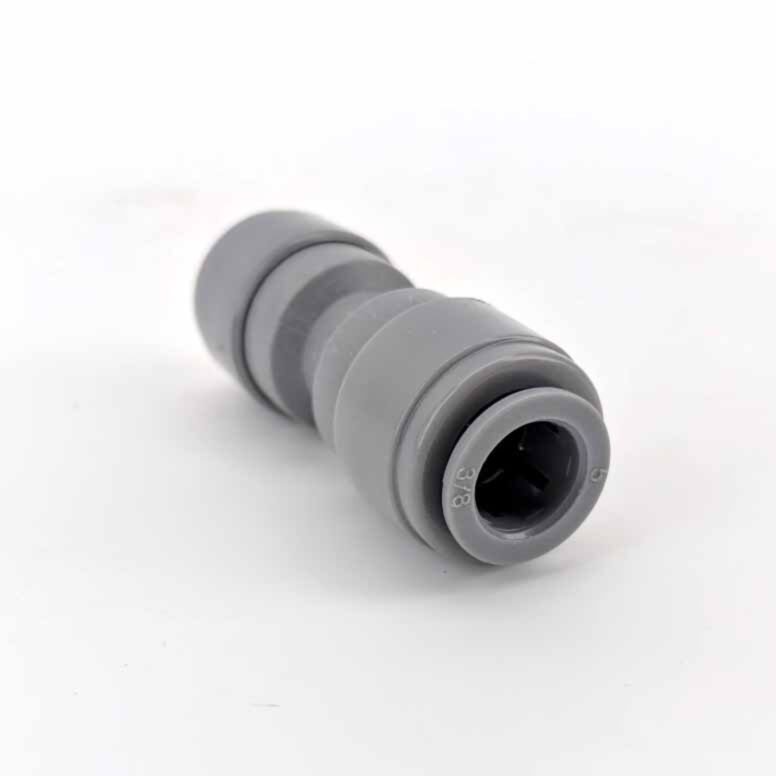

duotight - 9.5mm (3/8") Joiner

ข้อต่อบอลวาล์วแบบกดนี้เหมาะสำหรับท่อเบียร์และแก๊ส EVABarrier ของเราในสาย OD ขนาด 9.5 มม. (3/8")

duotight 1.10 การออกแบบ

ฟิตติ้งแบบกดเหล่านี้ได้รับการออกแบบทางวิศวกรรมเพื่อประสิทธิภาพสูงสุดในการใช้งานทั้งก๊าซและของเหลว เมื่อเทียบกับอุปกรณ์ดันแบบอื่นๆ ในตลาด duotight ใช้แนวทางความปลอดภัยสองเท่าในการเชื่อมต่อทั้งหมดด้วยโอริง EPDM สองตัวต่อพอร์ตท่อ ไม่มีการผลักดันอื่น ๆ ในตลาดที่มีโอริง EPDM นับประสาสอง! ต่อการเชื่อมต่อ

**ขอแนะนำให้ตัดท่อน้ำทิ้งเป็นแนวตรง ไม่ใช่ทำมุม เพื่อให้แน่ใจว่าเส้นตรงสมบูรณ์ ในการถอดฟิตติ้ง เพียงกดที่ปลอกรัดและท่อก็ถอดออกได้ ฟิตติ้งแบบกดเหล่านี้เหมาะสำหรับการใช้งานสูงสุด 100 psi.

Duotight เป็นอุปกรณ์ที่มีความสามารถในการซีลที่มากกว่าปรกติเนื่องจากการออกแบบซีลโอริงแบบสองชั้น และใช้วัสดุ EPDM คุณภาพสูง.

**EPDM = คือ ยางเอทิลีนโพรพิลีน ซึ่งทนต่อสารเคมี รวมถึงเข้ากันได้กับโอโซน น้ำมัน สารประกอบอัลคาไลน์ และกรดที่หลากหลาย น้ำ แอลกอฮอล์ คีโตน และเครื่องดื่ม - เมื่อเปรียบเทียบกับซิลิคอนและไวนิล EPDM มีอัตราการส่งผ่านก๊าซที่ดีกว่าทนต่อการสึกหรอได้ดีกว่า ปราศจากBPA และเป็นตัวเลือกที่ดีสำหรับการใช้งานเกรดอาหาร.

https://youtu.be/0zH946D_m24
