Best Seller

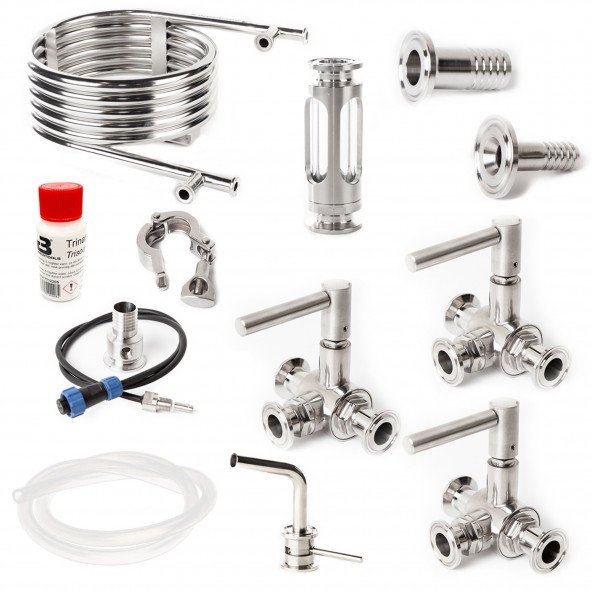

B40 Pro + 4 Values Packs + Trubinator™

คุณสมบัติสินค้า:

หม้อต้มเบียร์ไฟฟ้า B40pro Brewing System, EU + Starter Pack, 4-Valve Setup 3.2kw, 9kg malt

รูปแบบการชำระเงิน

Share

B40pro Brewing System, EU + Starter Pack, 3-Valve Setup
3.2kw, 9kg malt

The B40pro is a brewing system without compromise. Built for enthusiasts.

  • 46-liter (12 gal) tank volume and 9kg (20 lb) malt capacity.
  • 20-40 liter (5-11 gal) pre-boil volume for flexibility
  • 3,2kW heating power makes heating and boiling fast.
  • High accuracy with 2 digital sensors.
  • Conical bottom with center draining for fast and easy cleaning.
Powerful control system with 7" touch-screen, Wifi and Bluetooth 4.2.

The B40pro has an 40 liter (10 gal) boil capacity and about 9kg (20 lb) malt capacity. It is equipped with a powerful pump, which can be controlled from the touch-screen. The wort is circulated up through the center-pipe and the pump is fitted using Tri-Clamps making it very easy to remove, even when the tank is full.

The malt pipe has latches that folds out when you lift it, so you can use both your hands for lifting.

Sparging is done without tubes or pipes outside the tank. A sparge tube installed on the outside of the centerpipe follows the malt pipe when lifted also lifting the wort spreading device. This makes it very easy to sparge from a separate tank without making a mess.

After brewing with the B40pro, you never have to turn it upside down for cleaning. The centerpipe is removed easily, and you can easily clean the unit, and all the trub will be drained directly to a bucket or the drains. Use the included circulation device as a CIP solution to save time and cleaning chemicals.

The system has two digital temperature sensors - one in the bottom of the tank and one before the pump. The maxium static offset is ±0,5°C. The sensors can be individually calibrated for maximum accuracy. They have an accuracy of 0.1°C. It's also possible to connect a third sensor (accessory) to monitor the temperature of the wort returning from the counterflow cooler, so you can pump directly to the fermenter when the temperature is right.

With powerful heating elements combining over 3,2kW (230V) of power, heating the water or wort is very fast. During the boil, the PID system is deactivated and you can adjust the power output to achieve the perfect rolling boil. You can also adjust the maximum current of each mains input, to 10, 13, 15 and 16 Amps, to make sure you never blow a fuse.

All ports are 34mm Tri-Clamp fittings for maximum flexibility without leaks. As standard the system is shipped with one 3-way valve. All silicone tubes are 16x25mm food grade silicone.

The control system is custom developed and features high quality electronics. The software is constantly being improved with new features. It is updated via WiFi.

Specification

Dimensions excl. packaging:58 (h) x 52 (w) x 52 (d) cm
Dimensions with one side valve:58 (h) x 62 (w) x 52 (d) cm
Dimensions with two valves:58 (h) x 72 (w) x 52 (d) cm
Packaging dimensions:70 (h) x 55 (w) x 55 (d) cm
Weight excl. packaging:20 kg
Weight incl. packaging:24.5 kg
Tank dimensions:Ø40 cm, height 36 cm
Tank volume:46 liters (rec maximum boil volume – 40 liter)
Malt pipe dimensions:Ø32 cm, height 32 cm
Malt pipe volume:25.7 l
Max recommended grain quantity:9 kg
Minimum liquid volume:15 l
Build material:1.0 mm stainless steel (SS304)
Heating elements:230V, 3200W (2x1600W)
Pump:24VDC brushless, max 25 l/min, max head 4.5 m, stainless steel head, stepless speed control from touch display
Controller:ARM Cortex M4 180mhz, 7" Touch display
Connectivity:WiFi 802.11 b/g/n, Bluetooth 4.2, MicroSD
Hoses:16x25mm silicone, food grade


What's Included:

  • Complete brewing system with controller, pump, tank sensor, heaters and lid
  • Malt pipe with handle and latches
  • 1 pcs expanded metal filter
  • 1 pcs 3-way valve
  • Temperature sensor with adapter for pump line
  • 5 pcs 34mm Tri Clamps with gaskets (all used for standard setup)
  • 3 pcs 34mm TC blind caps
  • 1 pcs dip tube, short type
  • 1 pcs mash hat for spreading the wort
  • 1 pcs sparge tube
  • 150cm 16x25mm silicone tube
  • 1 pcs 34mm TC to 19mm hose barb adapter
  • O-rings for the center pipe and dip tube
  • 1 pcs Power Cable, 2 meter

*Please note that some parts of our systems are made by hand, and might have some minor cosmetic imperfections. This will not affect the functionality of the product.



ระบบการต้มเบียร์ B40pro, EU + Starter Pack, การตั้งค่า 3 วาล์ว ,3.2kw มอลต์ 9กก

B40pro เป็นระบบการกลั่นเบียร์ที่สมบูรณ์แบบ สร้างขึ้นสำหรับผู้ที่ชื่นชอบ
- ปริมาตรถัง 46 ลิตร (12 แกลลอน) และความจุมอลต์ 9 กก. (20 ปอนด์)
- ปริมาตรก่อนเดือด 20-40 ลิตร (5-11 แกลลอน) เพื่อความยืดหยุ่น
- กำลังความร้อน 3,2kW ทำให้ความร้อนและเดือดเร็ว
- ความแม่นยำสูงด้วยเซ็นเซอร์ดิจิตอล 2 ตัว
- ก้นทรงกรวยพร้อมช่องระบายน้ำตรงกลางเพื่อการทำความสะอาดที่รวดเร็วและง่ายดาย
- ระบบควบคุมอันทรงพลังพร้อมหน้าจอสัมผัสขนาด 7 นิ้ว, Wifi และ Bluetooth 4.2
- B40pro มีความจุต้ม 40 ลิตร (10 แกลลอน) และความจุมอลต์ประมาณ 9 กก. (20 ปอนด์) มีปั๊มทรงพลังซึ่งสามารถควบคุมได้จากหน้าจอสัมผัส สาโทไหลเวียนผ่านท่อตรงกลางและติดตั้งปั๊มโดยใช้ Tri-Clamps ทำให้ถอดออกได้ง่ายมาก แม้ว่าถังจะเต็ม

ท่อมอลต์มีสลักที่พับออกได้เมื่อคุณยกขึ้น คุณจึงใช้มือทั้งสองข้างในการยกได้

การพ่นทำได้โดยไม่ต้องใช้ท่อหรือท่อนอกถัง ท่อสแปร์จที่ติดตั้งอยู่ที่ด้านนอกของท่อกลางตามท่อมอลต์เมื่อยกขึ้นและยกอุปกรณ์กระจายสาโทด้วย ทำให้ง่ายต่อการแยกจากถังแยกโดยไม่ทำให้เลอะเทอะ

หลังจากต้มด้วย B40pro แล้ว คุณจะไม่ต้องพลิกเครื่องเพื่อทำความสะอาดอีกต่อไป ถอดท่อกลางออกได้ง่าย และคุณสามารถทำความสะอาดตัวเครื่องได้อย่างง่ายดาย และท่อส่งน้ำทั้งหมดจะถูกระบายโดยตรงไปยังถังหรือท่อระบายน้ำ ใช้อุปกรณ์หมุนเวียนที่รวมเป็นโซลูชัน CIP เพื่อประหยัดเวลาและทำความสะอาดสารเคมี


ระบบมีเซ็นเซอร์อุณหภูมิแบบดิจิตอลสองตัว - ตัวหนึ่งอยู่ด้านล่างของถังและอีกตัวอยู่ก่อนปั๊ม ค่าชดเชยสถิตสูงสุดคือ ±0.5°C เซ็นเซอร์สามารถปรับเทียบทีละตัวเพื่อความแม่นยำสูงสุด มีความแม่นยำ 0.1°C นอกจากนี้ยังสามารถเชื่อมต่อเซ็นเซอร์ตัวที่สาม (อุปกรณ์เสริม) เพื่อตรวจสอบอุณหภูมิของสาโทที่ส่งคืนจากตัวทำความเย็นแบบทวนกระแส ดังนั้นคุณจึงสามารถสูบฉีดไปยังถังหมักได้โดยตรงเมื่ออุณหภูมิเหมาะสม

ด้วยองค์ประกอบความร้อนอันทรงพลังที่รวมกำลังไฟฟ้ามากกว่า 3,2kW (230V) การให้น้ำร้อนหรือสาโททำได้อย่างรวดเร็วมาก ในระหว่างการต้ม ระบบ PID จะปิดใช้งาน และคุณสามารถปรับกำลังไฟฟ้าเพื่อให้ได้การเดือดที่สมบูรณ์แบบ คุณยังสามารถปรับกระแสไฟสูงสุดของแต่ละอินพุตหลักเป็น 10, 13, 15 และ 16 แอมป์ เพื่อให้แน่ใจว่าคุณจะไม่ฟิวส์ขาด.

พอร์ตทั้งหมดเป็นอุปกรณ์ฟิตติ้ง Tri-Clamp ขนาด 34 มม. เพื่อความยืดหยุ่นสูงสุดโดยไม่มีการรั่วซึม ตามมาตรฐานระบบจะมาพร้อมกับวาล์ว 3 ทางเดียว ท่อซิลิโคนทั้งหมดเป็นซิลิโคนเกรดอาหาร 16x25 มม.

ระบบควบคุมได้รับการพัฒนาขึ้นเป็นพิเศษและมีอุปกรณ์อิเล็กทรอนิกส์คุณภาพสูง มีการปรับปรุงซอฟต์แวร์อย่างต่อเนื่องด้วยคุณลักษณะใหม่ มีการอัพเดตผ่าน WiFi.

ข้อมูลจำเพา ะ
ขนาดไม่รวม บรรจุภัณฑ์ : 58 (ส) x 52 (w) x 52 (d) cm
ขนาดพร้อมวาล์วข้างเดียว : 58 (ส) x 62 (ก) x 52 (ง) ซม.
ขนาดที่มีสองวาล์ว : 58 (h) x 72 (w) x 52 (d) cm
ขนาดบรรจุภัณฑ์ : 70 (ส) x 55 (ก) x 55 (ง) ซม.
น้ำหนักไม่รวม บรรจุภัณฑ์ : 20 กก.
น้ำหนักรวม บรรจุภัณฑ์ : 24.5 กก.
ขนาดถัง : Ø40 ซม. สูง 36 ซม.
ปริมาตรถัง : 46 ลิตร (ปริมาตรต้มสูงสุด - 40 ลิตร)
ขนาดท่อมอลต์ : Ø32 ซม. สูง 32 ซม.
ปริมาณท่อมอลต์ : 25.7 l
ปริมาณเมล็ดพืชสูงสุดที่แนะนำ : 9 กก.
ปริมาณของเหลวขั้นต่ำ : 15 L
วัสดุก่อสร้าง : สแตนเลส 1.0 มม. (SS304)
องค์ประกอบความร้อน : 230V, 3200W (2x1600W)
ปั๊ม : ไร้แปรงถ่าน 24VDC, สูงสุด 25 ลิตร/นาที, หัวสูงสุด 4.5 ม., หัวสแตนเลส, การควบคุมความเร็วแบบไม่ต่อเนื่องจากจอแสดงผลแบบสัมผัส
ตัวควบคุม : ARM Cortex M4 180mhz, จอสัมผัส 7"
การเชื่อมต่อ : WiFi 802.11 b/g/n, Bluetooth 4.2, MicroSD
ท่อ : ซิลิโคน 16x25 มม. เกรดอาหาร

สิ่งที่รวม :

  • ระบบการต้มเบียร์ที่สมบูรณ์พร้อมตัวควบคุม ปั๊ม เซ็นเซอร์ถัง เครื่องทำความร้อน และฝาปิด
  • ท่อมอลต์พร้อมที่จับและสลัก
  • ตัวกรองโลหะขยาย 1 ชิ้น
  • วาล์ว 3 ทาง 1 ชิ้น
  • เซ็นเซอร์อุณหภูมิพร้อมอะแดปเตอร์สำหรับสายปั๊ม
  • 5 ชิ้น 34mm Tri Clamps พร้อมปะเก็น (ทั้งหมดใช้สำหรับการตั้งค่ามาตรฐาน)
  • 3 ชิ้น 34mm TC blind caps
  • ท่อจุ่ม 1 ชิ้น แบบสั้น
  • ฝาบด 1 ชิ้น สำหรับ
  • หลอดสเปรย์ 1 ชิ้น
  • ท่อซิลิโคน 150ซม. 16x25มม.
  • 1 pcs 34 มม. TC ถึง 19 มม. ข้อต่อท่อข้อต่อ
  • โอริงสำหรับท่อกลางและท่อจุ่ม
  • สายไฟ 1 ชิ้น 2 เมตร

*โปรดทราบว่าระบบบางส่วนของเราทำด้วยมือ และอาจมีข้อบกพร่องด้านความสวยงามเล็กน้อย ซึ่งจะไม่ส่งผลต่อการทำงานของผลิตภัณฑ์
